Description

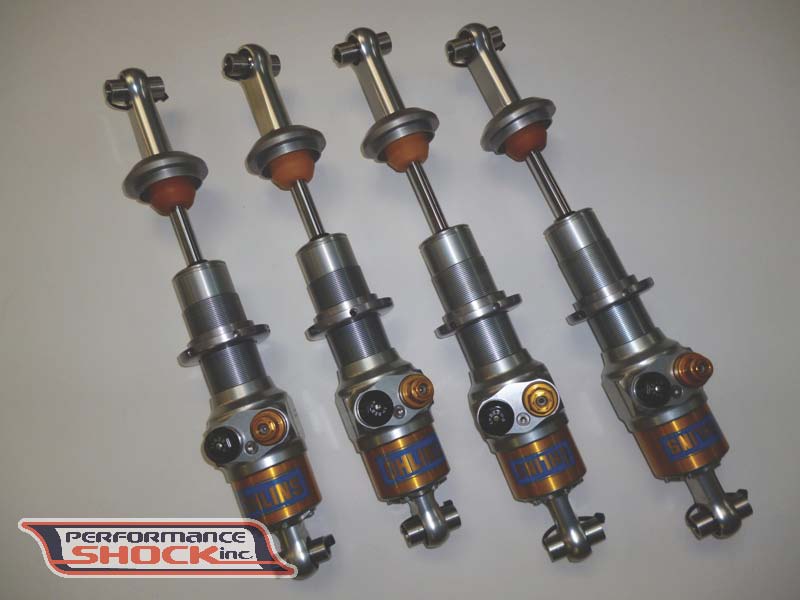

Performance Shock's new Ohlins TTX based suspension system for the Lotus Evora. This kit is built using Ohlins ILX36 dampers which are based upon the tremendously successful TTX40 damper design that captured top results in the LeMans, ChampCar, WTCC series etc.
It features a twin tube design providing positive pressure build-up and has proven itself far superior to conventional techniques used in other racing dampers. Low internal friction, vast adjustment range and responsiveness even at the smallest strokes are amongst its virtues. The 3-way configuration includes low speed compression (LSC) and rebound (LSR)and high speed compression HSC), but is easily upgradeable to 3 or 4-way adjustable at any time.
A major advantage with the TTX36 inline damper is the integral reservoir that makes it very compact and easy to package (front damper). The top eye can easily be re-clocked without opening the damper. No longer is the balancing of reservoir damping ("can stack") to main piston damping required to avoid cavitation. With no reservoir valve, the internal pressure of the damper unit will be kept to a minimum. The low amount of hysteresis results in excellent short stroke/high force performance. The Ohlins TTX range of shocks require very low gas pressure which considerably improves grip without any loss of damping performance.
This is by far the best suspension package that you can install on your Evora, period! Improving what is already excellent from the factory.
**SPRINGS ARE SOLD SEPARATELY**
Key Kit Features:
* Extremely broad external adjustment range (22 clicks bump/rebound)
* Low internal friction
* Direct damping response / low N2 pressure
* TTX36 'inline' front/rear damper
* Spring hardware included, *Eibach and Hyperco Springs available separately.
Close-up Damper picture: PSi 'Raceline' Evora 2-way close-up image
**NOTE: THESE KITS ARE INTENDED FOR TRACK USE ONLY**
Have a question regarding this item? Please use our Contact Us form or call (707) 938-5664 for Customer Service.
