Description

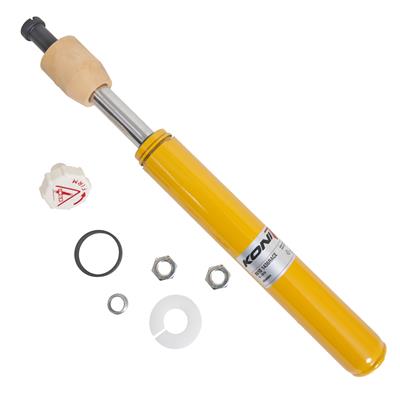

The 8610 series McPherson strut cartridge insert fits a variety of strut housings. The KONI 8610’s offer externally adjustable rebound damping with unique valving characteristics that have been developed in conjunction with many top racing teams and chassis builders. The piston rod is designed to fit through a 5/8″ bearing/camber plate assembly. To determine the correct fitting of an 8610, please follow these guidelines: Measure the inside depth of your strut housing. (NOTE: At this time also make certain that the inside diameter of your housing is large enough to accept the KONI insert, which has an O.D. of 43.5mm, 1.71″.) For the KONI insert to be installed properly the measured depth of your strut housing must be 326-329mm (12.83″ – 12.95″). In the event that your existing housing depth is greater than the above recommended depth, the user must then fabricate a spacer and place it under the KONI insert so as to achieve the proper depth relationship.Click HERE for a specification card for the 86 series strut inserts
Have a question regarding this item? Please use our Contact Us form or call (707) 938-5664 for Customer Service.
Please view the dimension notes below to select the correct insert for you application.
Note: This item is sold individually
